farmall 130
 | 1956 - 1958
Row-Crop tractor | 1956 - 1958 | Row-Crop tractor |
|---|---|---|---|
1956 - 1958 | |||
Row-Crop tractor | |||
1956 - 1958 | |
|---|---|
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Farmall (a part of International Harvester) |
Row-Crop tractor | |
Total built | 9,197 |
Original price | $2000 (1958) |
Variants | |
|---|---|
130 | row-crop |
130 Hi-Clear | high-crop |
130 | similar International Harvester model |
Farmall 130 Engine | |
|---|---|
International Harvester 2.0L 4-cyl gasoline | |
Fuel tank | 11 gal
41.6 L |
Engine details ...  | |
Farmall 130 Transmission | |
|---|---|
4-speed sliding gear | |
Transmission details ...  |
Farmall 130 Power | |
|---|---|
Drawbar (tested) | 19.91 hp
14.8 kW |
Belt (tested) | 22.23 hp
16.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Differential mechanical contracting band brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
Farmall 130 photos...  |
Tractor hitch | |
|---|---|
Type | IH Fast-Hitch (1-arm) |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 2,800 lbs
1270 kg |
Front tire | 5.00x15 |
Rear tire | 9.00x24 |
Full dimensions and tires ...  | |
Farmall 130 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
130 Serial Number Location | |
|---|---|
 | |
Serial number plate on the left side of the clutch housing. |
130 Serial Numbers | |
|---|---|
1956 | 501 |
1957 | 1120 |
1958 | 8363 |
Final | 10209 |
FAQ: How to read a serial number table. | |

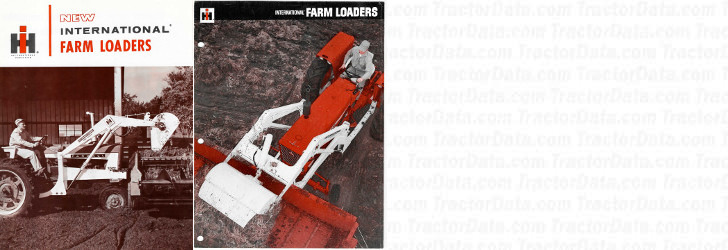

References | |
|---|---|
 | |
Farm Loaders published in 1962, by International Harvester | |
Farm Loaders published in 1970, by International Harvester |
