kubota lawn tractors f2260
 | 1997 - 2005
F60 SeriesFront-mount mower | 1997 - 2005 | F60 Series | Front-mount mower |
|---|---|---|---|---|
1997 - 2005 | ||||
F60 Series | ||||
Front-mount mower | ||||
1997 - 2005 | |
|---|---|
F60 Series | |
Front-mount mower |
Production | |
|---|---|
Manufacturer | Kubota |
Front-mount mower | |
Kubota F2260 Engine | |
|---|---|
22HP Kubota 1001cc 3-cyl diesel | |
Fuel tank | 10.5 gal
39.7 L |
Engine details ...  | |
Kubota F2260 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Power steering | |
Wet disc brakes | |
Two-post ROPS | |
Photos | |
|---|---|
 | |

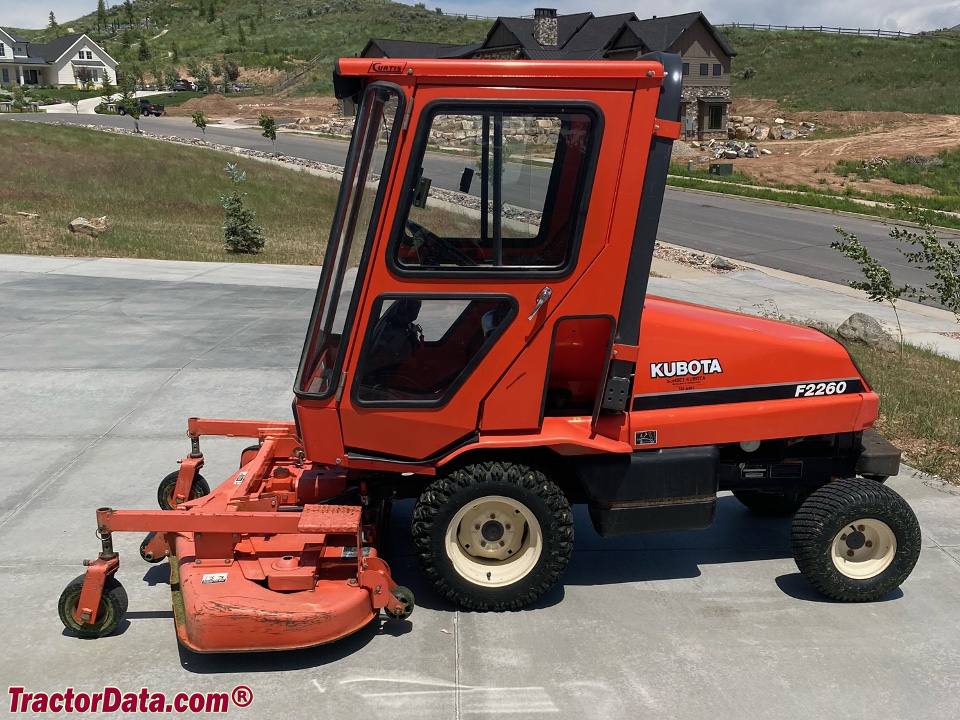

Kubota F2260 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | hydraulic |
Dimensions & Tires | |
|---|---|
Wheelbase | 51.2 inches
130 cm |
Weight | 1290 lbs
585 kg |
Front tire | 23x10.50-12 |
Rear tire | 18x7.00-8 |
Full dimensions and tires ...  | |
Kubota F2260 attachments | |
|---|---|
60" front-mount mower deck | |
72" front-mount mower deck | |
Attachment details ...  |
F2260 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the mower frame, ahead of the rear axle. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 70 |
References | |
|---|---|
 | |
Diesel Front Mower F2260/F2560E/F2560/F3060 published in 1996, by Kubota | |
Operator's Manual F2260, F2560, F2560E, F3060, F3560 (K3513-6291-2) published in 1996 | |
Workshop Manual F2260, F2560(E), F3060, F3560 (9Y011-11903) published in 1996 | |
1999 Products published by Kubota |
