massey ferguson 1190
 | 1992 - 1999
1100 SeriesCompact Utility tractor | 1992 - 1999 | 1100 Series | Compact Utility tractor |
|---|---|---|---|---|
1992 - 1999 | ||||
1100 Series | ||||
Compact Utility tractor | ||||
1992 - 1999 | |
|---|---|
1100 Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Compact Utility tractor | |
Original price was $29,000 in 1999 | |
Variants | |
|---|---|
TA607 | similar Iseki model |
Massey Ferguson 1190 Engine | |
|---|---|
Isuzu 2.8L 4-cyl diesel | |
Engine details ...  |
Massey Ferguson 1190 Transmission | |
|---|---|

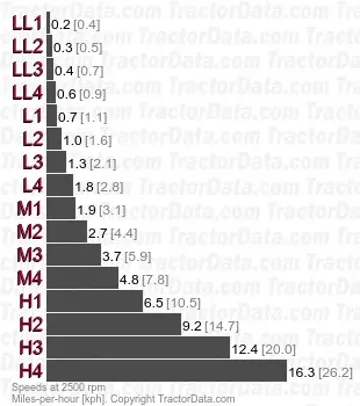

16-speed synchronized shuttle | |
Transmission details ...  |
Massey Ferguson 1190 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
PTO (claimed) | 53 hp
39.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Mechanical wet disc brakes | |
Two-post fixed ROPS. | |
Capacity | |
|---|---|
Fuel | 13.5 gal
51.1 L |
Hydraulic system | 8.5 gal
32.2 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 8.5 gal
32.2 L |
Pressure | 2417 psi
166.7 bar |
Valves | 0 to 2 |
Pump flow | 8.2 gpm
31.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position, draft, and response control |
Rear lift (at ends) | 4850 lbs
2199 kg |
Rear lift (at 24"/610mm) | 4045 lbs
1834 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 79.9 inches
202 cm |
Weight | 4376 lbs
1984 kg |
Front tire | 9.5-18 |
Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Massey Ferguson 1190 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
1190 Serial Numbers | |
|---|---|
1992 | A90101 |
1993 | B90101 |
1994 | C00101 |
1995 | D00101 |
1996 | E00101 |
1997 | F01001 |
1998 | G01001 |
1999 | H01001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 799 |
Battery volts | 12 |
References | |
|---|---|
 | |
MF 1100 Series published in 1995, by Massey Ferguson | |
1190 published in 1992, by Massey Ferguson |
