massey ferguson 393
 | 1992 - 1997
300 SeriesUtility tractor | 1992 - 1997 | 300 Series | Utility tractor |
|---|---|---|---|---|
1992 - 1997 | ||||
300 Series | ||||
Utility tractor | ||||
1992 - 1997 | |
|---|---|
300 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Utility tractor | |
Built in Coventry, England | |
Original price was $30,200 in 1997 | |
Massey Ferguson 393 Engine | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Engine details ...  |
Massey Ferguson 393 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Massey Ferguson 393 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
PTO (claimed) | 83 hp
61.9 kW |
Drawbar (tested) | 71.5 hp
53.3 kW |
PTO (tested) | 84.6 hp
63.1 kW |

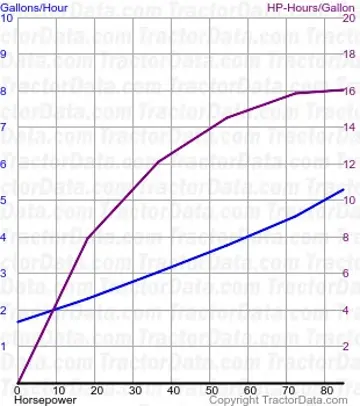

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post fixed ROPS. Cab optional with air-conditioning. |
Photos | |
|---|---|
 | |
Massey Ferguson 393 photos...  |
Capacity | |
|---|---|
ROPS Fuel | 28.5 gal
107.9 L |
Cab Fuel | 33.3 gal
126.0 L |
Hydraulic system | 11.5 gal
43.5 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 11.5 gal
43.5 L |
Valves | 2 |
Pump flow | 9.5 gpm
36.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 84.1 inches
213 cm |
4WD Wheelbase | 92.5 inches
234 cm |
Weight | 6371 to 7636 pounds |
Front tire | 9.5L-15 |
Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
300 Series published in 1992, by Massey Ferguson | |
MF 300 Series published in 1994, by Massey Ferguson |
