mccormick intl c60 max
 | 2004 - 2007
C-Max SeriesUtility tractor | 2004 - 2007 | C-Max Series | Utility tractor |
|---|---|---|---|---|
2004 - 2007 | ||||
C-Max Series | ||||
Utility tractor | ||||
2004 - 2007 | |
|---|---|
C-Max Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
Utility tractor | |
Built in Doncaster, England | |
McCormick Intl C60 Max Engine | |
|---|---|
Perkins 3.3L 3-cyl diesel | |
Fuel tank | 27 gal
102.2 L |
Engine details ...  | |

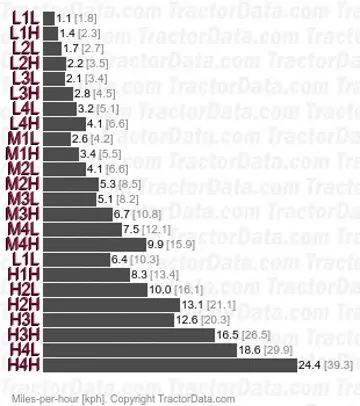

McCormick Intl C60 Max Transmissions | |
|---|---|
12-speed | |
24-speed | |
Transmission details ...  |
McCormick Intl C60 Max Power | |
|---|---|
Engine | 58.5 hp
43.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2611 psi
180.0 bar |
Valves | 2 to 4 |
Pump flow | 13.8 gpm
52.2 lpm |
Total flow | 21.7 gpm
82.1 lpm |
Steering flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 5732 lbs
2600 kg |
| 8157 lbsOptOptional
3700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/750 |
| 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 87.5 inches
222 cm |
4WD Wheelbase | 86.5 inches
219 cm |
Weight | 6570 to 6724 pounds |
Front tire | 12.4-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
C Max Series published in 2006, by McCormick |
