mccormick intl c70
 | 2001 - 2003
C SeriesUtility tractor | 2001 - 2003 | C Series | Utility tractor |
|---|---|---|---|---|
2001 - 2003 | ||||
C Series | ||||
Utility tractor | ||||
2001 - 2003 | |
|---|---|
C Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
Utility tractor | |
Built in Doncaster, England | |
McCormick Intl C70 Engine | |
|---|---|
Perkins 4.2L 4-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
McCormick Intl C70 Transmissions | |
|---|---|
8-speed synchromesh | |
8-speed shuttle | |
16-speed two-speed power shift | |
Transmission details ...  |
McCormick Intl C70 Power | |
|---|---|
Engine | 73 hp
54.4 kW |
PTO (claimed) | 58 hp
43.3 kW |
Drawbar (tested) | 50.2 hp
37.4 kW |
PTO (tested) | 59.7 hp
44.5 kW |

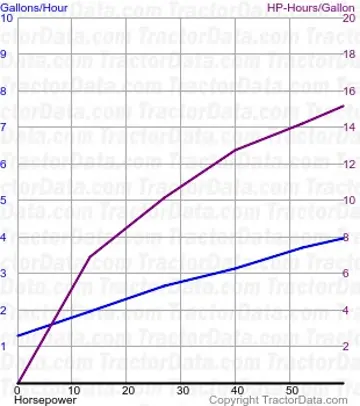

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post fixed ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Pump flow | 15.5 gpm
58.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 3664 lbs
1661 kg |
| 5097 lbsOptOptional
2311 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1994 |
| 1000@2000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 84.3 inches
214 cm |
4WD Wheelbase | 88 inches
223 cm |
Weight | 5941 to 8265 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
C Series published in 2001, by McCormick | |
C Series published in 2002, by McCormick |
