mccormick intl cx105
 | 2003 - 2007
CX SeriesUtility tractor | 2003 - 2007 | CX Series | Utility tractor |
|---|---|---|---|---|
2003 - 2007 | ||||
CX Series | ||||
Utility tractor | ||||
2003 - 2007 | |
|---|---|
CX Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Utility tractor | |
Built in Doncaster, England | |
McCormick Intl CX105 Engines | |
|---|---|
Perkins 4.0L 4-cyl diesel | |
Perkins 4.4L 4-cyl diesel | |
Engine details ...  |
McCormick Intl CX105 Transmissions | |
|---|---|
24-speed partial power shift | |

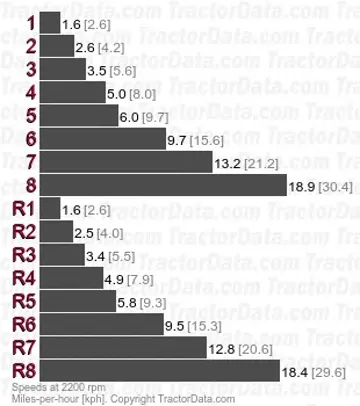

8-speed synchro shuttle | |
16-speed partial power shift | |
Transmission details ...  |
McCormick Intl CX105 Power | |
|---|---|
Engine (net) | 102 hp
76.1 kW |
Engine | 102 hp
76.1 kW |
PTO (claimed) | 83 hp
61.9 kW |
Drawbar (tested) | 74 hp
55.2 kW |
PTO (tested) | 86.2 hp
64.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
ROPS. Cab optional. | |
Photos | |
|---|---|
 | |
McCormick Intl CX105 photos...  |
Capacity | |
|---|---|
Fuel | 41 gal
155.2 L |
Hydraulic system | 9.1 gal (2WD)
34.4 L |
| 9.7 gal (4WD)
36.7 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9.1 gal (2WD)
34.4 L |
| 9.7 gal (4WD)
36.7 L |
Pump flow | 15.85 gpm
60.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 8,543 lbs
3875 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2000 |
| 1000@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.9 inches
235 cm |
Weight | 8,280 lbs
3755 kg |
Front tire | 10.00-16 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 65 |
Battery volts | 12 |
References | |
|---|---|
 | |
CX Series published in 2006, by McCormick |
