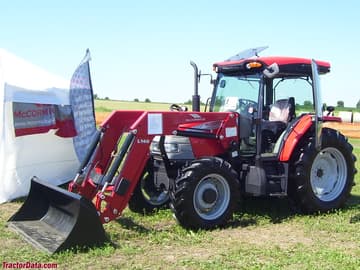

mccormick intl cx90
 | 2008 - 2011
CX SeriesUtility tractor | 2008 - 2011 | CX Series | Utility tractor |
|---|---|---|---|---|
2008 - 2011 | ||||
CX Series | ||||
Utility tractor | ||||
2008 - 2011 | |
|---|---|
CX Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Utility tractor | |
Built in Italy | |
McCormick Intl CX90 Engine | |
|---|---|
Perkins 4.4L 4-cyl diesel | |
Fuel tank | 40.9 gal
154.8 L |
Engine details ...  | |
McCormick Intl CX90 Transmissions | |
|---|---|
24-speed power shuttle | |
36-speed power shuttle | |
8-speed 16 | |
Transmission details ...  |
McCormick Intl CX90 Power | |
|---|---|
Engine | 83 hp
61.9 kW |
PTO (claimed) | 66 hp
49.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Wet disc brakes | |
Cab standard. Optional sir-conditioning. | |
Photos | |
|---|---|
 | |
McCormick Intl CX90 photos...  |
Hydraulics | |
|---|---|
Valves | 2 |
Pump flow | 15.8 gpm
59.8 lpm |
Total flow | 23.7 gpm
89.7 lpm |
Steering flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 6,519 lbs
2957 kg |
| 9,038 lbs (optional)
4099 kg |
Front Hitch | II (optional) |
Front lift | 6,613.9 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
| 540/750 (optional) |
Front PTO | independent (optional) |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.7 inches
235 cm |
Weight | 8311.4 to 8465.7 pounds |
Front tire | 320/85R24 |
Rear tire | 420/85R34 |
Full dimensions and tires ...  | |
