mccormick intl gm45
 | 2011 -
GM SeriesCompact Utility tractor | 2011 - | GM Series | Compact Utility tractor |
|---|---|---|---|---|
2011 - | ||||
GM Series | ||||
Compact Utility tractor | ||||
2011 - | |
|---|---|
GM Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
Compact Utility tractor | |
McCormick Intl GM45 Engine | |
|---|---|
Yanmar 2.0L 4-cyl diesel | |
Engine details ...  |
McCormick Intl GM45 Transmissions | |
|---|---|
12-speed | |
16-speed creeper | |
Transmission details ...  |
McCormick Intl GM45 Power | |
|---|---|
Engine | 44 hp
32.8 kW |
PTO (claimed) | 40 hp
29.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Mechanical wet disc brakes | |
Two-post folding ROPS. Cab available with air-conditioning. |

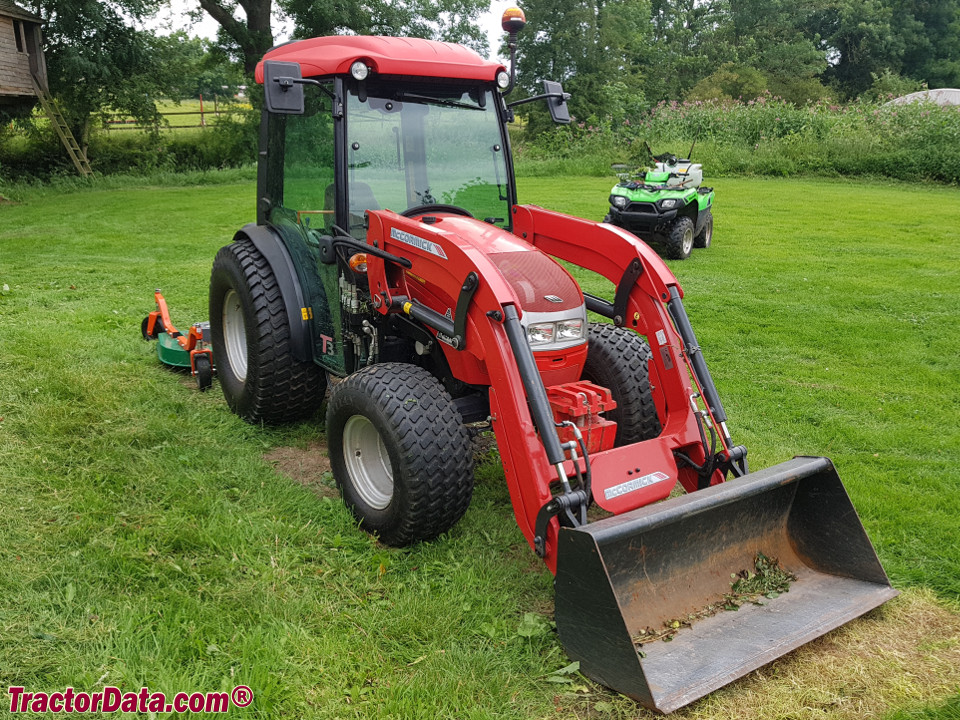

Photos | |
|---|---|
 | |
McCormick Intl GM45 photos...  |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Valves | 2 |
SCV flow | 7.4 gpm
28.0 lpm |
Total flow | 12.6 gpm
47.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2646 lbs
1200 kg |
Front Hitch | IN OptOptional |
Front lift | 882 lbs
400 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | mechanical |
Rear PTO Type | 540/750/ground |
Front PTO | independent OptOptional |
Clutch | mechanical |
Front PTO Type | 1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 66.9 inches
169 cm |
Weight | 3197 lbs
1450 kg |
Front tire | 240/70R16 |
Rear tire | 360/70R20 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
