mccormick intl mc100
 | 2000 - 2003
MC SeriesUtility tractor | 2000 - 2003 | MC Series | Utility tractor |
|---|---|---|---|---|
2000 - 2003 | ||||
MC Series | ||||
Utility tractor | ||||
2000 - 2003 | |
|---|---|
MC Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
Utility tractor | |
Built in Doncaster, England | |
McCormick Intl MC100 Engine | |
|---|---|
Perkins 4.0L 4-cyl diesel | |
Fuel tank | 51.8 gal
196.1 L |
Engine details ...  | |
McCormick Intl MC100 Transmissions | |
|---|---|

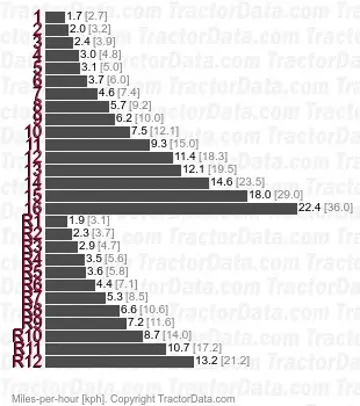

16-speed partial power shift | |

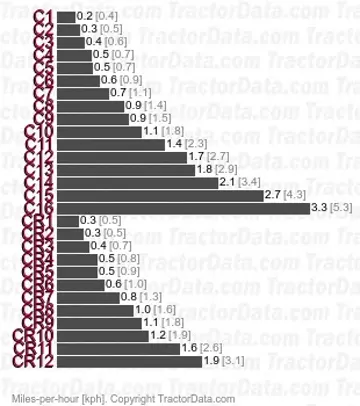

32-speed partial power shift with creeper | |
Transmission details ...  |
McCormick Intl MC100 Power | |
|---|---|
Engine | 102 hp
76.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | wet disc |
Power steering | |
Two-post folding ROPS. Cab available with air-conditioning. | |
Photos | |
|---|---|
 | |
McCormick Intl MC100 photos...  |
Hydraulics | |
|---|---|
Type | axial piston pump |
Pump flow | 28.8 gpm
109.0 lpm |
SCV flow | 25.1 gpm
95.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | IIIN |
Control | electronic lower lift |
Rear lift (at 24"/610mm) | 8201 lbs
3719 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1877 |
| 1000@2200 |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.4 inches
242 cm |
Weight | 10470 to 11900 pounds |
Front tire | 13.6R28 |
Rear tire | 16.9R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Battery volts | 12 |
References | |
|---|---|
 | |
MC Series published in 2000, by McCormick | |
MC Series published in 2001, by McCormick |
