mccormick intl mc120
 | 2003 - 2007
MC SeriesUtility tractor | 2003 - 2007 | MC Series | Utility tractor |
|---|---|---|---|---|
2003 - 2007 | ||||
MC Series | ||||
Utility tractor | ||||
2003 - 2007 | |
|---|---|
MC Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Utility tractor | |
Built in Doncaster, England | |
McCormick Intl MC120 Engine | |
|---|---|
Perkins 6.0L 6-cyl diesel | |
Engine details ...  |
McCormick Intl MC120 Transmissions | |
|---|---|

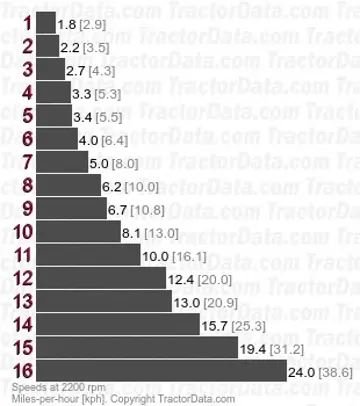

16-speed partial power shift | |

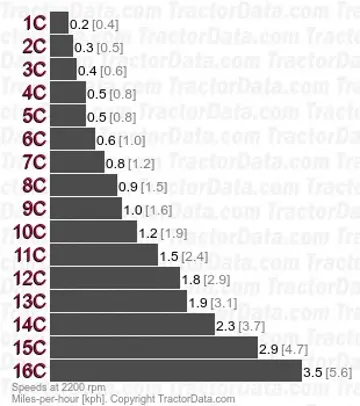

32-speed partial power shift with creeper | |
Transmission details ...  |
McCormick Intl MC120 Power | |
|---|---|
Engine | 115 hp
85.8 kW |
PTO (claimed) | 98 hp
73.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic wet clutch |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 70 gal
264.9 L |
Hydraulic system | 19.8 gal
74.9 L |
Hydraulics | |
|---|---|
Type | pressure flow compensated (PFC) |
Capacity | 19.8 gal
74.9 L |
Valves | 2 to 4 |
Pump flow | 28.8 gpm
109.0 lpm |
SCV flow | 25.1 gpm
95.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | IIN |
Control | electronic lower link draft sensing |
Rear lift (at ends) | 11234 lbs
5095 kg |
| 13137 lbsOptOptional
5958 kg |
Rear lift (at 24"/610mm) | 8201 lbs
3719 kg |
| 10180 lbsOptOptional
4617 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2163 |
| 1000@2200 |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Weight | 11124 to 12742 pounds |
Front tire | 11.00x16 |
2WD Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
McCormick Intl MC120 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Battery volts | 12 |
References | |
|---|---|
 | |
MC Series published in 2005, by McCormick | |
MC Series published in 2008, by McCormick |
