mccormick intl mtx140
 | 2000 - 2003
MTX SeriesRow-Crop tractor | 2000 - 2003 | MTX Series | Row-Crop tractor |
|---|---|---|---|---|
2000 - 2003 | ||||
MTX Series | ||||
Row-Crop tractor | ||||
2000 - 2003 | |
|---|---|
MTX Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
Row-Crop tractor | |
Built in Doncaster, England | |
McCormick Intl MTX140 Engine | |
|---|---|
Perkins 6.0L 6-cyl diesel | |
Fuel tank | 70 gal
264.9 L |
Engine details ...  | |
McCormick Intl MTX140 Transmissions | |
|---|---|
16-speed four-speed power shift | |
32-speed creeper | |
Transmission details ...  |
McCormick Intl MTX140 Power | |
|---|---|
Engine | 145 hp
108.1 kW |
Drawbar (claimed) | 110 hp
82.0 kW |
PTO (claimed) | 127 hp
94.7 kW |
Drawbar (tested) | 110.2 hp
82.2 kW |
PTO (tested) | 127.8 hp
95.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |

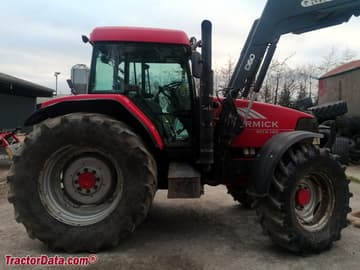

McCormick Intl MTX140 photos...  |
Hydraulics | |
|---|---|
Type | pressure flow compensating |
Pump flow | 28.8 gpm
109.0 lpm |
SCV flow | 25.1 gpm
95.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic lower link draft sensing |
Rear lift (at 24"/610mm) | 10180 lbs
4617 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1877 |
| 1000@2200 |
Dimensions & Tires | |
|---|---|
Wheelbase | 106.3 inches
270 cm |
Weight | 12130 to 14205 pounds |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Battery volts | 12 |
References | |
|---|---|
 | |
MTX Series published in 2000, by McCormick |
