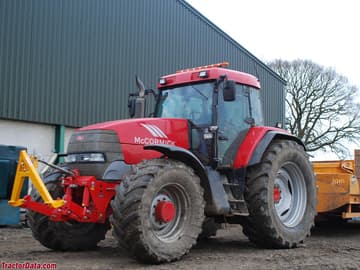

mccormick intl mtx185
 | 2004 - 2005
MTX SeriesRow-Crop tractor | 2004 - 2005 | MTX Series | Row-Crop tractor |
|---|---|---|---|---|
2004 - 2005 | ||||
MTX Series | ||||
Row-Crop tractor | ||||
2004 - 2005 | |
|---|---|
MTX Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Row-Crop tractor | |
Built in Doncaster, England | |
The McCormick MTX185 is similar to the McCormick XTX200. | |
McCormick Intl MTX185 Engine | |
|---|---|
Iveco 6.7L 6-cyl diesel | |
Fuel tank | 91.7 gal
347.1 L |
Engine details ...  | |
McCormick Intl MTX185 Transmissions | |
|---|---|
16-speed | |
32-speed eight-speed power shift | |
Transmission details ...  |
McCormick Intl MTX185 Power | |
|---|---|
Engine | 195.8 hp
146.0 kW |
PTO (claimed) | 160 hp
119.3 kW |
Drawbar (tested) | 140.38 hp
104.7 kW |
PTO (tested) | 192.3 hp
143.4 kW |

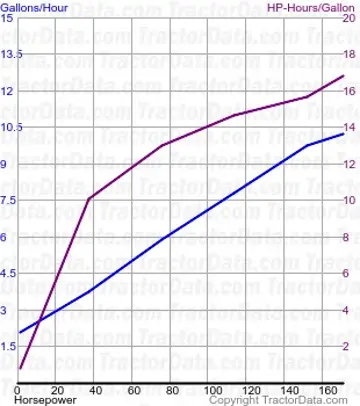

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
McCormick Intl MTX185 photos...  |
Hydraulics | |
|---|---|
Type | pressure flow compensating |
Pump flow | 32.0 gpm
121.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | electronic lower link draft sensing |
Rear lift | 18361 lbs
8328 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113.1 inches
287 cm |
Weight | 15880 to 16010 pounds |
Front tire | 540/65R30 |
Rear tire | 650/65R42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
| 120 (optional) |
Battery volts | 12 |
