mccormick intl x6 470
 | 2014 -
X6 Series | 2014 - | X6 Series |
|---|---|---|---|
2014 - | |||
X6 Series | |||
2014 - | |
|---|---|
X6 Series |
Production | |
|---|---|
Manufacturer | McCormick Intl (a part of Argo) |
McCormick Intl X6.470 Engine | |
|---|---|
BetaPower 4.5L 4-cyl diesel | |
Fuel tank | 71.3 gal
269.9 L |
Exhaust fluid (DEF) | 10 gal
37.9 L |
Engine details ...  | |
McCormick Intl X6.470 Transmissions | |
|---|---|
18-speed | |
54-speed | |
Transmission details ...  |
McCormick Intl X6.470 Power | |
|---|---|
Engine (gross) | 150 hp
111.9 kW |
Engine (max) | 163 hp
121.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic |
Wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional |
Cab standard with air-conditioning. Optional pneumatic seat suspension. | |
Photos | |
|---|---|
 | |

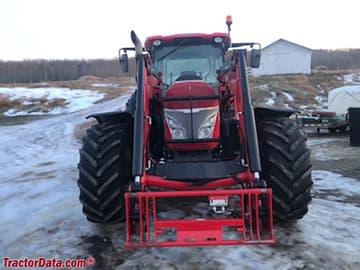

McCormick Intl X6.470 photos...  |
Hydraulics | |
|---|---|
Valves | 3 to 5 |
Pump flow | 23 gpm
87.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 18480 lbs
8382 kg |
Front Hitch | II |
Front lift | 7700 lbs
3492 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 107 inches
271 cm |
Weight | 13200 lbs
5987 kg |
Front tire | 480/65R28 |
Rear tire | 650/65R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
