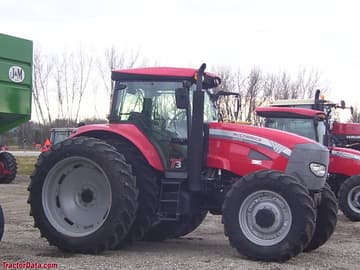

mccormick intl xtx145
 | 2008 - ???? | 2008 - ???? |
|---|---|---|
2008 - ???? | ||
2008 - ???? |
|---|
Production | |
|---|---|
Manufacturer | McCormick Intl |
McCormick Intl XTX145 Engine | |
|---|---|
6.7L 6-cyl diesel | |
Fuel tank | 79 gal
299.0 L |
Engine details ...  | |
McCormick Intl XTX145 Transmissions | |
|---|---|
32-speed partial power shift | |
48-speed partial power shift | |
Transmission details ...  |
McCormick Intl XTX145 Power | |
|---|---|
Engine | 145 hp
108.1 kW |
PTO (claimed) | 134 hp
99.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Wet disc brakes | |
Cab standard with heat and air-conditioning. Optional hydraulic suspension. |
Photos | |
|---|---|
 | |
McCormick Intl XTX145 photos...  |
Hydraulics | |
|---|---|
Type | closed center |
Valves | 1 to 5 |
Total flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear lift | 17,637 lbs
8000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 108 inches
274 cm |
Weight | 14,330 lbs
6500 kg |
Rear tire | 600/65R38 |
Full dimensions and tires ...  | |
