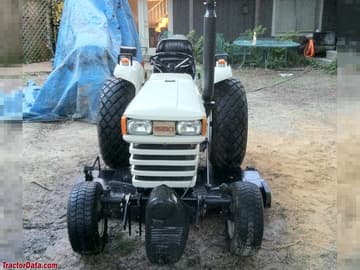

Bolens G192
 | 1979 - 1983
Compact Utility tractorIseki built |
|---|---|
1979 - 1983 | |
Compact Utility tractor | |
Iseki built | |
1979 - 1983 | |
|---|---|
Compact Utility tractor | |
Iseki built |
Production | |
|---|---|
Distributor | Bolens |
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
G192 | 2WD |
G194 | 4WD |
TS1910 | similar Iseki model |
Bolens G192 Engine | |
|---|---|
Isuzu 1.0L 2-cyl diesel | |
Fuel tank | 4.3 gal
16.3 L |
Engine details ...  | |
Bolens G192 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Bolens G192 Power | |
|---|---|
Engine | 19 hp
14.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical shoe brakes | |
Open operator station. Two-post ROPS (#1960) optional with available canopy. Soft-side cab (#19706) optional | |
Photos | |
|---|---|
 | |
Bolens G192 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2000 psi
137.9 bar |
Pump flow | 3.1 gpm
11.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Control | Position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 1672 lbs
758 kg |
Full dimensions and tires ...  | |
Bolens G192 attachments | |
|---|---|
54" mid-mount mower deck | |
snowblower | |
blade | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Equipment Seminar published in 1982 | |
Diesel Tractors published in 1979, by Bolens | |
Diesel Tractors - The Work Machines published in 1980, by Bolens |
