Bolens G272
 | 1983 - 1989
Compact Utility tractorIseki built |
|---|---|
1983 - 1989 | |
Compact Utility tractor | |
Iseki built | |
1983 - 1989 | |
|---|---|
Compact Utility tractor | |
Iseki built |
Production | |
|---|---|
Distributor | Bolens |
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
G272/2702 | 2WD |
G274/2704 | 4WD |
TE4270 | similar Iseki model |
Bolens G272 Engine | |
|---|---|
Isuzu 1.3L 3-cyl diesel | |
Fuel tank | 7.25 gal
27.4 L |
Engine details ...  | |
Bolens G272 Transmission | |
|---|---|
18-speed synchromesh | |
Transmission details ...  |
Bolens G272 Power | |
|---|---|
Engine | 27 hp
20.1 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical wet disc brakes | |
Two-post fixed ROPS. | |

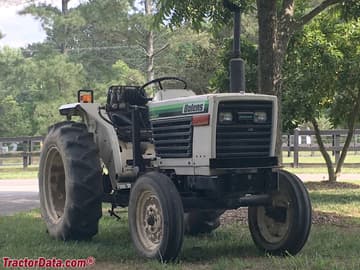

Photos | |
|---|---|
 | |
Bolens G272 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2000 psi
137.9 bar |
Pump flow | 5.5 gpm
20.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift | 2500 lbs
1134 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 2250 lbs
1020 kg |
Full dimensions and tires ...  | |
Bolens G272 attachments | |
|---|---|
snowblower | |
blade | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery CCA | 305 |
Battery volts | 12 |
References | |
|---|---|
 | |
High Performance published in 1987, by Bolens | |
Bolens Diesel published in 1983 |
