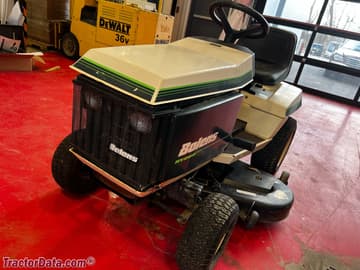

bolens lawn tractors 13014
 | 1992 - 1993
Suburban SeriesGarden tractor | 1992 - 1993 | Suburban Series | Garden tractor |
|---|---|---|---|---|
1992 - 1993 | ||||
Suburban Series | ||||
Garden tractor | ||||
1992 - 1993 | |
|---|---|
Suburban Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Bolens 13014 Engine | |
|---|---|
14HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Bolens 13014 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Bolens 13014 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45 inches
114 cm |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-10 |
Full dimensions and tires ...  | |
Bolens 13014 attachments | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
13014 Serial Numbers | |
|---|---|
Location: | Serial number tag on the rear fender, under the tractor seat, on the left side. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 45 |
