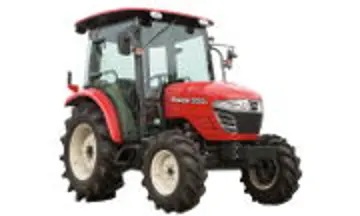

branson 3725c
 | 2017 -
Compact Utility tractor | 2017 - | Compact Utility tractor |
|---|---|---|---|
2017 - | |||
Compact Utility tractor | |||
2017 - | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Branson (a part of Kukje) |
Compact Utility tractor | |
Variants | |
|---|---|
3725R | ROPS shuttle |
3725H | ROPS hydrostatic |
3725C | Cab shuttle |
3725CH | Cab hydrostatic |
Branson 3725C Engine | |
|---|---|
Kukje 2.1L 4-cyl diesel | |
Engine details ...  |
Branson 3725C Transmission | |
|---|---|
12-speed shuttle | |
Transmission details ...  |
Branson 3725C Power | |
|---|---|
Engine (net) | 37 hp
27.6 kW |
PTO (claimed) | 33 hp
24.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Cab with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 12 gal
45.4 L |
Hydraulic system | 10 gal
37.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 10 gal
37.9 L |
Pressure | 2100 psi
144.8 bar |
Pump flow | 11.1 gpm
42.0 lpm |
Total flow | 16.1 gpm
60.9 lpm |
Steering flow | 5 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 3306 lbs
1499 kg |
Rear lift (at 24"/610mm) | 2420 lbs
1097 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/540E (1.375) |
Engine RPM | 540@2500 |
| 540E@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.1 inches
180 cm |
Weight | 4211 lbs
1910 kg |
Front tire | 9.5x16 |
Rear tire | 12.4x28 |
Full dimensions and tires ...  | |
Branson 3725C attachments | |
|---|---|
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 70 |
Battery volts | 12 |
