cub cadet 7000
 | 1998 - 2003
7000 SeriesSub-Compact Utility tractor | 1998 - 2003 | 7000 Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
1998 - 2003 | ||||
7000 Series | ||||
Sub-Compact Utility tractor | ||||
1998 - 2003 | |
|---|---|
7000 Series | |
Sub-Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet |
Sub-Compact Utility tractor | |
Original price was $11,400 in 2003 | |
Variants | |
|---|---|
7000 | 2WD gear |
7200 | 4WD gear |
7205 | 4WD hydro |
Cub Cadet 7000 Engine | |
|---|---|
Mitsubishi 1.1L 3-cyl diesel | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ...  | |
Cub Cadet 7000 Transmission | |
|---|---|
6-speed partially synchronized | |
Transmission details ...  |
Cub Cadet 7000 Power | |
|---|---|
Engine | 20 hp
14.9 kW |
PTO (claimed) | 17.5 hp
13.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical dry shoe brakes | |
Two-post folding ROPS. | |

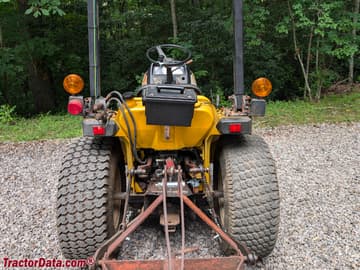

Photos | |
|---|---|
 | |
Cub Cadet 7000 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Pump flow | 5.8 gpm
22.0 lpm |
Total flow | 9.2 gpm
34.8 lpm |
Steering flow | 3.4 gpm
12.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1400 lbs
635 kg |
Rear lift (at 24"/610mm) | 980 lbs
444 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2356 |
Mid PTO | live OptOptional |
Mid PTO Type | 2000 (1.0) |
Engine RPM | 2000@2470 |
Dimensions & Tires | |
|---|---|
Wheelbase | 57.9 inches
147 cm |
Weight | 1837 lbs
833 kg |
Front tire | 20x8-10 |
Rear tire | 9.5x16 |
Full dimensions and tires ...  | |
Cub Cadet 7000 attachments | |
|---|---|
60" mid-mount mower deck | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

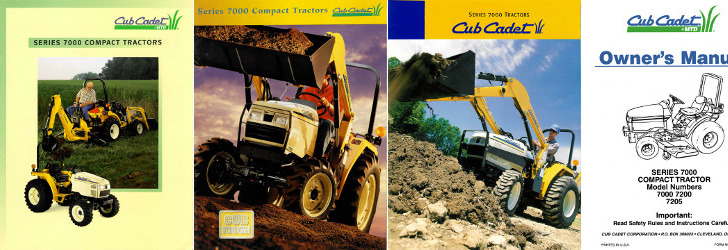

References | |
|---|---|
 | |
Series 7000 Tractors published in 1998, by Cub Cadet | |
Series 7000 Compact Tractors published in 1999, by Cub Cadet | |
Series 7000 Tractors published in 2001, by Cub Cadet | |
Owner's Manual Series 7000 Compact Tractor (770-0910A) |
