deutz allis lawn tractors vanguard fc8
 | 1987 - 1989
Vanguard SeriesFront-mount mowerSimplicity built | 1987 - 1989 | Vanguard Series | Front-mount mower | Simplicity built |
|---|---|---|---|---|---|
1987 - 1989 | |||||
Vanguard Series | |||||
Front-mount mower | |||||
Simplicity built | |||||
1987 - 1989 | |
|---|---|
Vanguard Series | |
Front-mount mower | |
Simplicity built |
Note: the Deutz-Allis model Vanguard FC8 is the same as the Simplicity SunRunner 8G. The following data is from the SunRunner 8G listing. |
|---|
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Front-mount mower | |
Original price was $2,299 in 1987 | |
Deutz-Allis Vanguard FC8 Engine | |
|---|---|
8HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Deutz-Allis Vanguard FC8 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical ilder pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 490 lbs
222 kg |
Front tire | 15x6-6.00 |
Rear tire | 4.1/3.5-4 |
Full dimensions and tires ...  | |
Deutz-Allis Vanguard FC8 attachments | |
|---|---|
36" front-mount mower deck | |
42" front-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

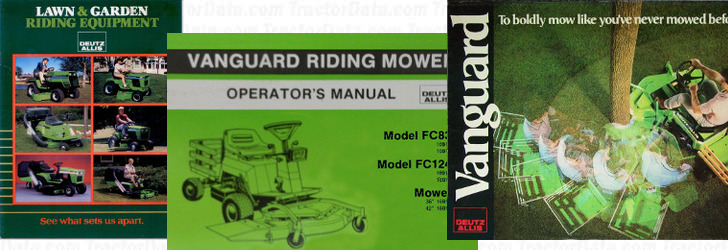

References | |
|---|---|
 | |
Lawn & Garden Riding Equipment published in 1988, by Deutz-Allis | |
Operator's Manual FC836 - FC1242 (1700998) published in 1987 | |
Vanguard published in 1986, by Deutz-Allis |
