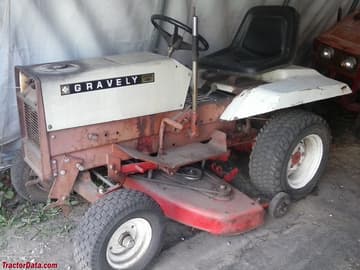

gravely lawn tractors 430
 | 1967 - 1972
400 SeriesGarden tractor | 1967 - 1972 | 400 Series | Garden tractor |
|---|---|---|---|---|
1967 - 1972 | ||||
400 Series | ||||
Garden tractor | ||||
1967 - 1972 | |
|---|---|
400 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Gravely |
Garden tractor | |
Gravely 430 Engines | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
12HP Onan 491cc 1-cyl | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Gravely 430 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical band brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
Gravely 430 photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 900 lbs
408 kg |
Front tire | 16-6.50x6 |
Rear tire | 23-8.50x12 |
Full dimensions and tires ...  | |
Gravely 430 attachments | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
430 Serial Numbers | |
|---|---|
Location: | Ahead of rear axle on left side. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual 424 - 430 - 432 (14535P1) published in 1969 | |
Service Manual 424, 430, 432, and 450 (14535P1) published in 1972 | |
Real Satisfaction... published in 1968, by Gravely | |
Gravely '70 published in 1970 | |
The Great Gravely Durability published in 1972 |
