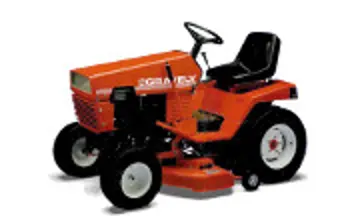

gravely lawn tractors gem 12 5
 | 1991 - 1992
Gravely Estate Mower SeriesLawn tractor | 1991 - 1992 | Gravely Estate Mower Series | Lawn tractor |
|---|---|---|---|---|
1991 - 1992 | ||||
Gravely Estate Mower Series | ||||
Lawn tractor | ||||
1991 - 1992 | |
|---|---|
Gravely Estate Mower Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Gravely (a part of Ariens) |
Lawn tractor | |
Gravely GEM 12.5 Engine | |
|---|---|
12.5HP Kohler 1-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Gravely GEM 12.5 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 610 lbs
276 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Gravely GEM 12.5 attachments | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Riding Tractors published in 1991, by Gravely |
