j i case lawn tractors 116 xc
 | 1984 - 1985
100XC SeriesLawn tractorIngersoll built | 1984 - 1985 | 100XC Series | Lawn tractor | Ingersoll built |
|---|---|---|---|---|---|
1984 - 1985 | |||||
100XC Series | |||||
Lawn tractor | |||||
Ingersoll built | |||||
1984 - 1985 | |
|---|---|
100XC Series | |
Lawn tractor | |
Ingersoll built |
Production | |
|---|---|
Distributor | J.I. Case |
Manufacturer | Ingersoll |
Lawn tractor | |
Built in Winneconne, Wisconsin, USA | |
J.I. Case 116 XC Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2.6 gal
9.8 L |
Engine details ...  | |
J.I. Case 116 XC Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
J.I. Case 116 XC photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 337 lbs
152 kg |
Front tire | 5.00-6 |
Rear tire | 8.50-8 |
Full dimensions and tires ...  | |
J.I. Case 116 XC attachments | |
|---|---|
34" mid-mount mower deck | |
44" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

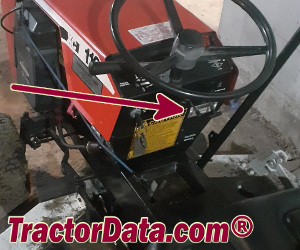

116 XC Serial Number Location | |
|---|---|
 | |
Serial number plate on the right side of the dashboard. |
References | |
|---|---|
 | |
Case Lawn/Garden Tractors published in 1984, by J.I. Case | |
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case | |
Lawn & Garden Tractors published in 1984, by Ingersoll |
