j i case lawn tractors 444
 | 1969 - 1988
Model year 1969-19761977-1988
400 SeriesGarden tractor | 1969 - 1988 | Model year 1969-19761977-1988 | 400 Series | Garden tractor |
|---|---|---|---|---|---|
1969 - 1988 | |||||
Model year 1969-19761977-1988 | |||||
400 Series | |||||
Garden tractor | |||||
1969 - 1988 | |
|---|---|
Model year 1969-19761977-1988 | |
400 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
J.I. Case 444 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Engine details ...  |
J.I. Case 444 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
J.I. Case 444 photos...  |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.25 gal
4.7 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 1.25 gal
4.7 L |
Pressure | 2000 psi
137.9 bar |
Pump flow | 8 gpm
30.3 lpm |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 770 lbs
349 kg |
Front tire | 6.50-8 |
Rear tire | 8.00-16 |
Full dimensions and tires ...  | |
J.I. Case 444 attachments | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
front-end loader | |
Attachment details ...  |

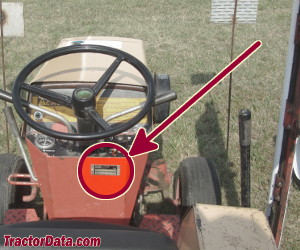

444 Serial Number Location | |
|---|---|
 | |
Serial plate on the right side of the dashboard, below the steering column. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 24 |
References | |
|---|---|
 | |
Operator's Instruction Manual 220, 222, 442 and 444 Tractors (9-2861) | |
New Case Line! published in 1972, by J.I. Case | |
Buyers Guide for '70 published in 1970, by J.I. Case | |
Time-saving experts published in 1975, by J.I. Case |
