john deere 3050
 | 1986 - 1993
3050 SeriesUtility tractor | 1986 - 1993 | 3050 Series | Utility tractor |
|---|---|---|---|---|
1986 - 1993 | ||||
3050 Series | ||||
Utility tractor | ||||
1986 - 1993 | |
|---|---|
3050 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Mannheim, Baden-Württemberg, Germany | |
John Deere 3050 Engine | |
|---|---|
John Deere 5.9L 6-cyl diesel | |
Engine details ...  |
John Deere 3050 Transmission | |
|---|---|

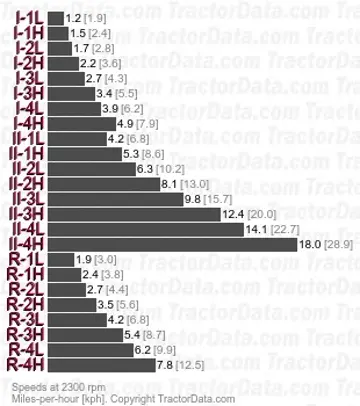

16-speed two-speed power shift | |
Transmission details ...  |
John Deere 3050 Power | |
|---|---|
Engine | 90.7 hp
67.6 kW |
PTO (claimed) | 84.3 hp
62.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
SG2 Cab standard with optional air-conditioning. | |
Photos | |
|---|---|
 | |
John Deere 3050 photos...  |
Capacity | |
|---|---|
Fuel | 32 gal
121.1 L |
| 45.7 gal*With optional 52L tank.
173.0 L |
Hydraulic system | 12.94 gal (2WD)
49.0 L |
| 13.74 gal (4WD)
52.0 L |
Hydraulics | |
|---|---|
Type | closed-center constant pressure |
Capacity | 12.94 gal (2WD)
49.0 L |
| 13.74 gal (4WD)
52.0 L |
Pressure | 2698 psi
186.0 bar |
Total flow | 11.62 gpm
44.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/IIIN |
Control | position and draft control |
2WD Rear lift (at ends) | 8988 lbs
4076 kg |
4WD Rear lift (at ends) | 10800 lbs
4898 kg |
Front Hitch | II |
Front lift | 3594 lbs
1630 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2070 |
| 1000@2172 |
Front PTO | independent |
Clutch | hydraulic wet disc |
Front PTO Type | 1000 |
Engine RPM | 1000@2172 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 100.4 inches
255 cm |
4WD Wheelbase | 101.8 inches
258 cm |
Weight | 9149 to 10714 pounds |
Front tire | 11.00x16 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 55 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 88 |
