john deere 5070m
 | 2009 - 2013
5M SeriesUtility tractor | 2009 - 2013 | 5M Series | Utility tractor |
|---|---|---|---|---|
2009 - 2013 | ||||
5M Series | ||||
Utility tractor | ||||
2009 - 2013 | |
|---|---|
5M Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
John Deere 5070M Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 5070M Transmissions | |
|---|---|

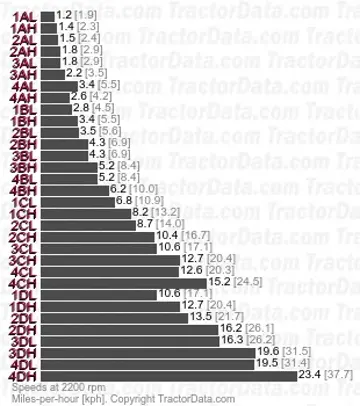

32-speed two-speed power shift | |

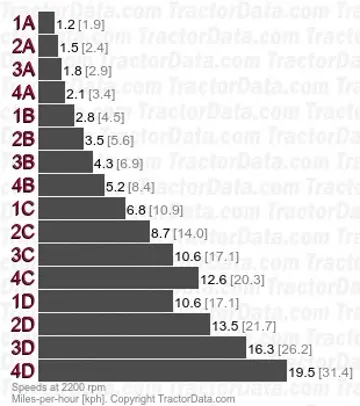

16-speed power shuttle | |
16-speed partially synchronized | |
Transmission details ...  |
John Deere 5070M Power | |
|---|---|
Engine (gross) | 70 hp
52.2 kW |
Engine (max) | 71 hp
52.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic rear |
Steering | hydrostatic power |
Wet disc brakes | |
Trailer brakes | hydraulic *Optional. |
| pneumatic *Optional. |
Cab standard. Optional air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2901 psi
200.0 bar |
Rear valves | 3 *Maximum |
Mid valves | 2 *Maximum |
Pump flow | 19.55 gpm
74.0 lpm |
| 24.8 gpm*Optional.
93.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | lower-link draft control *Mechanical standard, electronic optional. |
Rear lift (at ends) | 8093 lbs
3670 kg |
Front Hitch | II OptOptional |
Front lift (at ends) | 6519 lbs
2957 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet discs |
Rear PTO Type | 540/540E/ground |
| 540/540E |
| 540/540E/1000 |
Engine RPM | 540@2100 |
| 540E@1645 |
| 1000@2100 |
Front PTO | independent OptOptional |
Clutch | electro-hydraulic wet discs |
Front PTO Type | 1000 |
Engine RPM | 1000@21080 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Weight | 8157 lbs
3700 kg |
Front tire | 13.6R24 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
John Deere 5070M attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
5 Series published in 2009, by John Deere |
