john deere lawn tractors 112
 | 1966 - 1974
Model year 1966-19671968-1974
100 SeriesGarden tractor | 1966 - 1974 | Model year 1966-19671968-1974 | 100 Series | Garden tractor |
|---|---|---|---|---|---|
1966 - 1974 | |||||
Model year 1966-19671968-1974 | |||||
100 Series | |||||
Garden tractor | |||||
1966 - 1974 | |
|---|---|
Model year 1966-19671968-1974 | |
100 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Variants | |
|---|---|
112H | hydraulic lift |
John Deere 112 Engine | |
|---|---|
10HP Tecumseh 388cc 1-cyl gasoline | |
Engine details ...  |
John Deere 112 Transmission | |
|---|---|
4-speed gear with variable pulley drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
John Deere 112 photos...  |
Capacity | |
|---|---|
Fuel | 1.9 gal
7.2 L |
Hydraulic system | 1.25 gal
4.7 L |
Hydraulics | |
|---|---|
Capacity | 1.25 gal
4.7 L |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 591 lbs
268 kg |
Front tire | 16x6.50-8 |
Rear tire | 8-12 |
Full dimensions and tires ...  | |
John Deere 112 attachments | |
|---|---|
38" mid-mount mower deck | |
46" mid-mount mower deck | |
snowblower | |
Attachment details ...  |

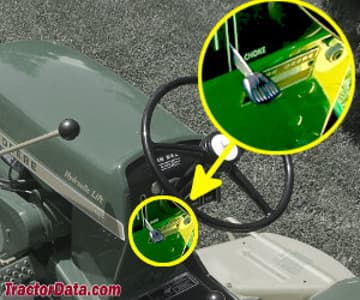

112 Serial Number Location | |
|---|---|
 | |
Serial number plate located below steering column. |
112 Serial Numbers | |
|---|---|
1966 | 2551 |
1967 | 3551 |
1968 | 100001 |
1969 | 130001 |
1970 | 160000 |
1971 | 185001 |
1972 | 250001 |
1973 | 260001 |
1974 | 300001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Add a handyman to your staff... published in 1966, by John Deere | |
John Deere Lawn & Garden Tractors published in 1967 | |
Service Manual 110 and 112 Lawn and Garden Tractors (SM-2059) published in 1967 |
