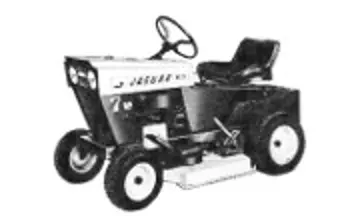

Levitt 28732 Jaguar
 | 1968
Lawn tractor |
|---|---|
1968 | |
Lawn tractor | |
1968 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | Levitt |
Lawn tractor | |
Built in Michigan City, Indiana, USA | |
Original price was $470 in 1968 | |
Levitt 28732 Engine | |
|---|---|
7HP Tecumseh 245cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Levitt 28732 Transmission | |
|---|---|
6-speed friction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 433 lbs
196 kg |
Front tire | 14x5 |
Rear tire | 16x6.50 |
Full dimensions and tires ...  | |
Levitt 28732 attachments | |
|---|---|
32" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Dealer Service Guide published in 1974 |
