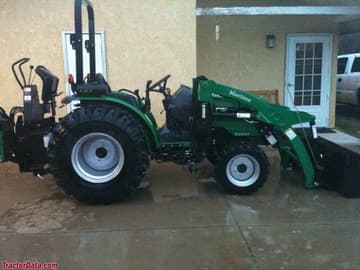

montana r2844
 | 2007 - 2010
R SeriesCompact Utility tractorLS built | 2007 - 2010 | R Series | Compact Utility tractor | LS built |
|---|---|---|---|---|---|
2007 - 2010 | |||||
R Series | |||||
Compact Utility tractor | |||||
LS built | |||||
2007 - 2010 | |
|---|---|
R Series | |
Compact Utility tractor | |
LS built |
Production | |
|---|---|
Distributor | Montana |
Manufacturer | LS |
Compact Utility tractor | |
Montana R2844 Engine | |
|---|---|
Mitsubishi 1.5L 4-cyl diesel | |
Fuel tank | 8.5 gal
32.2 L |
Engine details ...  | |
Montana R2844 Transmissions | |
|---|---|
12-speed | |
hydrostatic | |
Transmission details ...  |
Montana R2844 Power | |
|---|---|
Engine | 28 hp
20.9 kW |
Gear PTO (claimed) | 23 hp
17.2 kW |
Hydro PTO (claimed) | 22 hp
16.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post ROPS. |
Photos | |
|---|---|
 | |
Montana R2844 photos...  |
Hydraulics | |
|---|---|
Pressure | 2417 psi
166.7 bar |
Valves | 2 |
Pump flow | 7.9 gpm
29.9 lpm |
Steering flow | 3.434 gpm
13.0 lpm |
Steering press. | 1706 psi
117.6 bar |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2619 lbs
1187 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Mid PTO | optional |
Dimensions & Tires | |
|---|---|
Weight | 2645 lbs
1199 kg |
Front tire | 7-14, |
Rear tire | 11.2-24, |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 50 |
Battery volts | 12 |
