mtd lawn tractors 495
 | 1971 - 1979
Lawn tractor | 1971 - 1979 | Lawn tractor |
|---|---|---|---|
1971 - 1979 | |||
Lawn tractor | |||
1971 - 1979 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | MTD |
Lawn tractor | |
Original price | $600 (1971 ) |
$635 (1972 ) | |
$695 (1975 ) | |
MTD 495 Engine | |
|---|---|
8HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
MTD 495 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
MTD 495 photos...  |
Dimensions & Tires | |
|---|---|
Front tire | 15x6.00 |
Rear tire | 18x8.50 |
Full dimensions and tires ...  | |
MTD 495 attachments | |
|---|---|
38" mid-mount mower deck | |
Attachment details ...  |

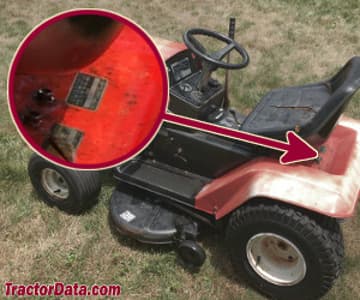

495 Serial Number Location | |
|---|---|
 | |
Serial number tag on the rear fender, below the seat. Model codes are shown. |
495 Serial Numbers | |
|---|---|
1971 | 131-495 |
1972 | 132-495 |
1973 | 133-495A |
1974 | 134-495A |
1975 | 135-495A |
1976 | 136-495A |
1978 | 137-495A |
1978 | 138-495A |
1979 | 139-495A |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

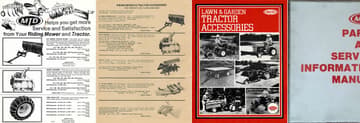

References | |
|---|---|
 | |
Riding Mower and Tractor Attachments published in 1971, by MTD | |
Riding Mower and Tractor Attachments published in 1972, by MTD | |
Lawn & Garden Tractor Accessories published in 1984, by MTD | |
Parts and Service Information Manual (770-1737) published in 1982 |
