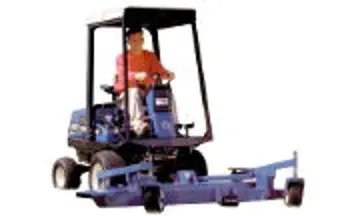

new holland lawn tractors cm224
 | 1990 - 2000
CM SeriesFront-mount mower | 1990 - 2000 | CM Series | Front-mount mower |
|---|---|---|---|---|
1990 - 2000 | ||||
CM Series | ||||
Front-mount mower | ||||
1990 - 2000 | |
|---|---|
CM Series | |
Front-mount mower |
Production | |
|---|---|
Manufacturer | New Holland |
Front-mount mower | |
New Holland CM224 Engine | |
|---|---|
22HP Shibaura 953cc 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
New Holland CM224 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical |
Power steering | |
Drum brakes | |
Two-post foldable ROPS. Optional four-post ROPS canopy and soft cab. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.2 inches
124 cm |
Weight | 1558 lbs
706 kg |
Front tire | 23x10.50-12 |
Rear tire | 18x7.00-8 |
Full dimensions and tires ...  | |
New Holland CM224 attachments | |
|---|---|
60" front-mount mower deck | |
72" front-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
Commercial Front Mowers published in 1998, by New Holland | |
North American Buyer's Guide published in 1997, by New Holland | |
U.K. Shibaura Catalog published in 1988, by BV Techno-Import |
