oliver 2055
 | 1971
55 SeriesRow-Crop tractor | 1971 | 55 Series | Row-Crop tractor |
|---|---|---|---|---|
1971 | ||||
55 Series | ||||
Row-Crop tractor | ||||
1971 | |
|---|---|
55 Series | |
Row-Crop tractor |
Note: the Oliver model 2055 is the same as the Minneapolis-Moline G1050. The following data is from the G1050 listing. |
|---|
Production | |
|---|---|
Manufacturer | Oliver |
Row-Crop tractor | |
Built in Minneapolis, Minnesota, USA | |
Original price was $11,800 in 1971 | |
Oliver 2055 Engines | |
|---|---|
Minneapolis-Moline 8.3L 6-cyl diesel | |
Minneapolis-Moline 8.3L 6-cyl LP gas | |
Fuel tank | 40 gal
151.4 L |
Engine details ...  | |
Oliver 2055 Transmissions | |
|---|---|
10-speed two-speed power shift | |

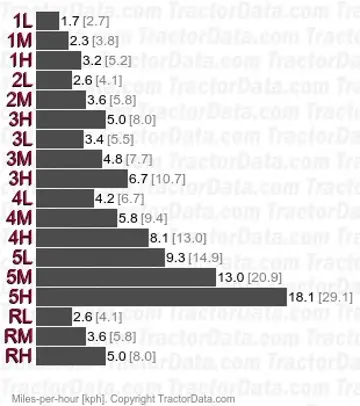

15-speed three-speed power shift | |
Transmission details ...  |
Oliver 2055 Power | |
|---|---|
Drawbar (claimed) | 102 hp
76.1 kW |
PTO (claimed) | 110 hp
82.0 kW |
Drawbar (tested) | 100.99 hp
75.3 kW |
PTO (tested) | 110.78 hp
82.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Disc brakes | |
Open operator station. Cab optional with heat and A/C |
Hydraulics | |
|---|---|
Type | open center |
| closed center OptOptional |
Valves | 2 or 3 |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 1000 (1.375) |
| 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Row-crop Wheelbase | 104.5 inches
265 cm |
Standard Wheelbase | 103.75 inches
263 cm |
Weight | 10700 to 11250 pounds |
Front tire | 7.50-16 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
2055 Serial Numbers | |
|---|---|
1971 | 43-100-416 |
Final | 43-100-544 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
LP-gas Batteries | 1 |
Diesel Batteries | 2 |
Battery volts | 12 |
