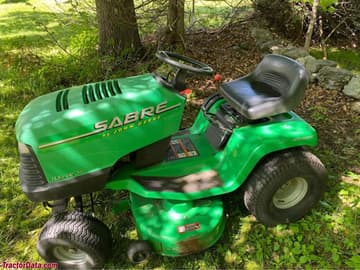

sabre lawn tractors 15 538hs
 | 1996 - 1999
Lawn tractor | 1996 - 1999 | Lawn tractor |
|---|---|---|---|
1996 - 1999 | |||
Lawn tractor | |||
1996 - 1999 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $1,800 in 1998 | |
Sabre 15.538HS Engine | |
|---|---|
15.5HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Sabre 15.538HS Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Sabre 15.538HS photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-8 |
Full dimensions and tires ...  | |
Sabre 15.538HS attachments | |
|---|---|
38" mid-mount mower deck | |
Attachment details ...  |
15.538HS Serial Numbers | |
|---|---|
Location: | Serial number decal on the rear fender deck, under the tractor's seat. |
1996 | GXSABAN010001 |
1997 | GXSABAH010001 |
1998 | GXSABAR010001 |
1999 | GX1538B010001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Sabre Lawn Tractors (OMGX10226) published in 1997 | |
Operator's Manual Sabre Lawn Tractors (OMGX10143) published in 1997 |
