sabre lawn tractors 1848gv
 | 1998 - 1999
Yard SeriesLawn tractor | 1998 - 1999 | Yard Series | Lawn tractor |
|---|---|---|---|---|
1998 - 1999 | ||||
Yard Series | ||||
Lawn tractor | ||||
1998 - 1999 | |
|---|---|
Yard Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Sabre 1848GV Engine | |
|---|---|
18HP Briggs & Stratton 568cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Sabre 1848GV Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Weight | 565 lbs
256 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x9.50-12 |
Full dimensions and tires ...  | |
Sabre 1848GV attachments | |
|---|---|
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
1848GV Serial Numbers | |
|---|---|
1998 | M01848G010000 |
1999 | M01848G020001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
Battery Group | BCI U1 |

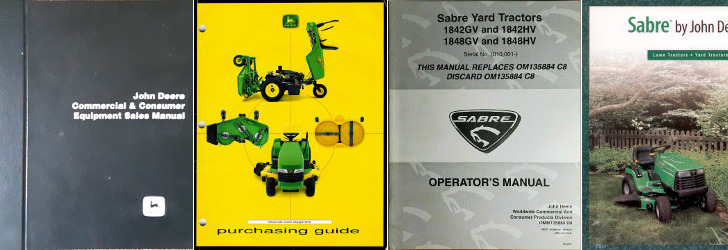

References | |
|---|---|
 | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Operator's Manual Sabre Yard Tractors 1842GV, 1842HV, 1848GV and 1848HV (OMM135884) published in 1998* | |
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere | |
*Publication contains known errors. |
