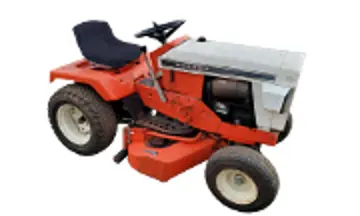

simplicity lawn tractors 3414s
 | 1974 - 1975
3400 SeriesGarden tractor | 1974 - 1975 | 3400 Series | Garden tractor |
|---|---|---|---|---|
1974 - 1975 | ||||
3400 Series | ||||
Garden tractor | ||||
1974 - 1975 | |
|---|---|
3400 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
3414S | shuttle |
3414H | hydrostatic |
Simplicity 3414S Engine | |
|---|---|
13HP Briggs & Stratton 494cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity 3414S Transmission | |
|---|---|
4-speed shuttle | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Simplicity 3414S photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 814 lbs
369 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Simplicity 3414S attachments | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
3414S Serial Numbers | |
|---|---|
Location: | Serial number decal on the left side of the tractor frame, in front of the seat. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual Baron 3414S Riding Tractor (178084) published in 1974 | |
Tractors and Attachments published in 1974, by Simplicity |
