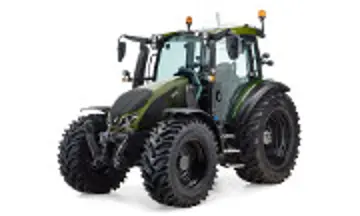

valtra g135
 | 2020 -
G SeriesUtility tractor | 2020 - | G Series | Utility tractor |
|---|---|---|---|---|
2020 - | ||||
G Series | ||||
Utility tractor | ||||
2020 - | |
|---|---|
G Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Valtra (a part of AGCO) |
Utility tractor | |

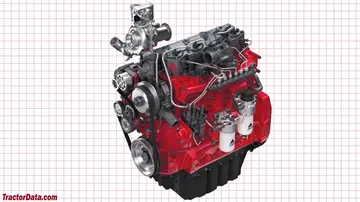

Valtra G135 Engine | |
|---|---|
AGCO Power 4.4L 4-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
| 42.3 gal (steel tank)
160.1 L |
Exhaust fluid (DEF) | 5.6 gal
21.2 L |
Engine details ...  | |
Valtra G135 Transmission | |
|---|---|
24-speed six-speed power shift | |
Transmission details ...  |
Valtra G135 Power | |
|---|---|
Engine | 135 hp
100.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. Valtra Guide ((Optional)) |
Hydraulics | |
|---|---|
Type | open center |
| load sensing OptOptional |
Rear valves | 2 to 4 |
Pump flow | 26.4 gpm (open center)
99.9 lpm |
| 29.1 gpm (load-sensing)
110.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 11240 lbs
5098 kg |
Front lift | 6744 lbs
3059 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
| 540/540E/1000 OptOptional |
Engine RPM | 540@1920 |
| 540E@1560 |
| 1000@1964 |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Engine RPM | 1000@1920 |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.4 inches
255 cm |
Weight | 11332 lbs
5140 kg |
Front tire | 340/85R24 |
Rear tire | 420/85R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
G Series published by Valtra |
