wheel horse lawn tractors c 175
 | 1980 - 1984
C SeriesGarden tractor | 1980 - 1984 | C Series | Garden tractor |
|---|---|---|---|---|
1980 - 1984 | ||||
C Series | ||||
Garden tractor | ||||
1980 - 1984 | |
|---|---|
C Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Wheel Horse |
Garden tractor | |
Built in South Bend, Indiana, USA | |

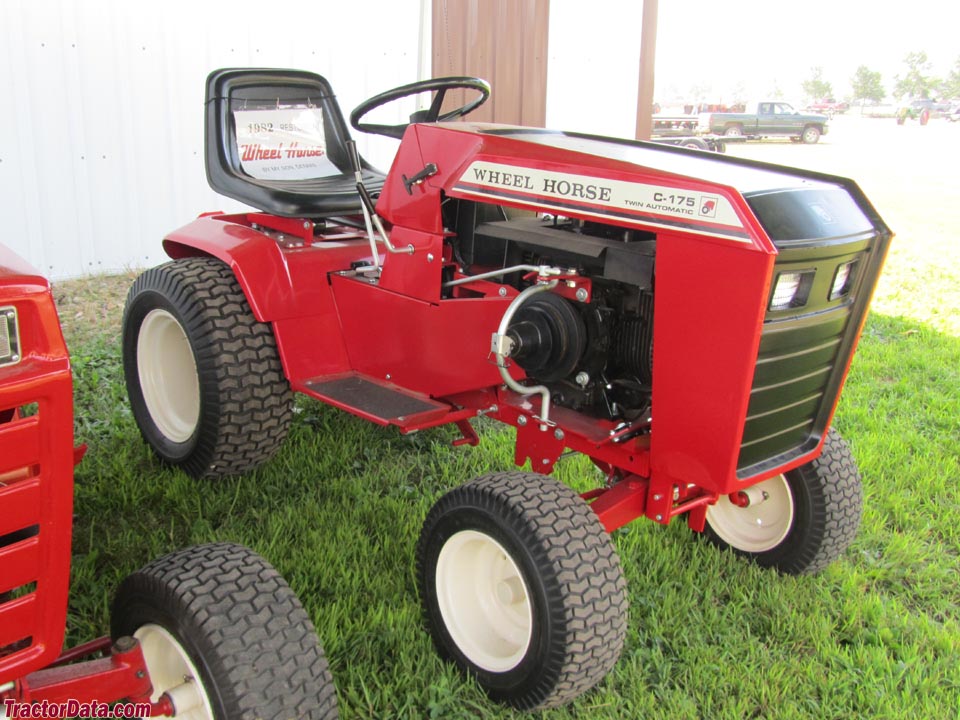

Wheel Horse C-175 Engine | |
|---|---|
17HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Wheel Horse C-175 Transmissions | |
|---|---|
6-speed gear | |
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Wheel Horse C-175 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 570 to 600 pounds |
Front tire | 16x6.50-8 |
Rear tire | 23x9.50-12 |
Full dimensions and tires ...  | |
Wheel Horse C-175 attachments | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
front-end loader | |
Attachment details ...  |
C-175 Serial Numbers | |
|---|---|
Location: | Serial number plate located below steering column. Tractor model codes are listed. |
1980 | 01-17K801 (gear) |
1981 | 01-17K802 (gear) |
1982 | 01-17K803 (gear) |
1983 | 11-17K801 (gear) |
1980 | 01-17KE01 (hydrostatic) |
1981 | 01-17KE02 (hydrostatic) |
1982 | 01-17KE02 (hydrostatic) |
1983 | 01-17KE03 (hydrostatic) |
1984 | 11-17KE01 (hydrostatic) |
1980 | 01-17KS01 (hydrostatic) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
Loader Model 45-08210 published in 1987, by Toro | |
Wheel Horse published in 1980 | |
Wheel Horse published in 1982 | |
Quality, at an affordable price published in 1984, by Wheel Horse | |
Operator's Manual B Series C Series (810302R1) published in 1980 |
