white field boss 21
 | 1986 - 1988
Compact Utility tractorIseki built | 1986 - 1988 | Compact Utility tractor | Iseki built |
|---|---|---|---|---|
1986 - 1988 | ||||
Compact Utility tractor | ||||
Iseki built | ||||
1986 - 1988 | |
|---|---|
Compact Utility tractor | |
Iseki built |
Production | |
|---|---|
Distributor | White |
Manufacturer | Iseki |
Compact Utility tractor | |
Original price | $8,500 (1988) |
White Field Boss 21 Engine | |
|---|---|
Isuzu 1.2L 3-cyl diesel | |
Fuel tank | 6.1 gal
23.1 L |
Engine details ...  | |

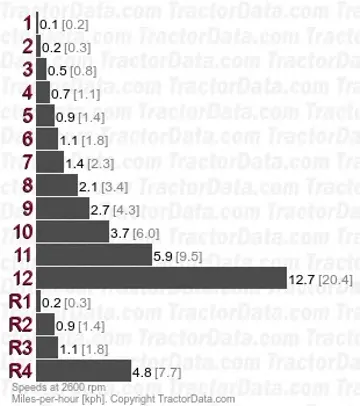

White Field Boss 21 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
White Field Boss 21 Power | |
|---|---|
Engine | 21 hp
15.7 kW |
PTO (claimed) | 19 hp
14.2 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
| 4x4 MFWD 4WD optional |
Steering | manual |
Mechanical expanding shoe brakes | |
Two-post ROPS. Optional canopy and radio. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2064 psi
142.3 bar |
Total flow | 5.5 gpm
20.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 |
Front PTO | crankshaft-driven |
Front PTO Type | 2600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 59 inches
149 cm |
Weight | 1584 to 1672 pounds |
Front tire | 4.00-12 |
Rear tire | 12.4-16 (2WD) |
Full dimensions and tires ...  | |
White Field Boss 21 attachments | |
|---|---|
60" mid-mount mower deck | |
front-end loader | |
Attachment details ...  |
Field Boss 21 Serial Numbers | |
|---|---|
1986 | TE3210T00595 (2WD) |
1987 | TE3210T00652 (2WD) |
1988 | TE3210T00967 (2WD) |
1986 | TE3210F02879 (4WD) |
1987 | TE3210F03079 (4WD) |
1988 | TE3210F04003 (4WD) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
1100 Series Front End Loaders published in 1987, by White | |
Field Boss 21 published in 1986, by White |
