ford 3000
 | 1965 - 1975
Utility tractor | 1965 - 1975 | Utility tractor |
|---|---|---|---|
1965 - 1975 | |||
Utility tractor | |||
1965 - 1975 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
10-speed full power shift | |
12-speed gear | |
8-speed gear | |
6-speed gear |
Transmission | |||||
|---|---|---|---|---|---|
Transmission | Select-O-Speed | ||||
Type | full power shift | ||||
Gears | 10 forward and 2 reverse | ||||
Oil capacity | 11 qts
10.4 L | ||||
Oil type | ESN-M2C41-AM2C41 | ESN-M2C41-A | M2C41 | ||
ESN-M2C41-A | |||||
M2C41 | |||||
Transmission can shifted between gears while moving. | |||||
ESN-M2C41-A | |
|---|---|
M2C41 |
Speeds | |
|---|---|
 |
Transmission | |||||
|---|---|---|---|---|---|
Transmission | 4-speed with over/under | ||||
Type | gear | ||||
Gears | 12 forward and 3 reverse | ||||
Oil capacity | 7 qts
6.6 L | ||||
Oil type | ESN-M2C77AM-4864-A | ESN-M2C77A | M-4864-A | ||
ESN-M2C77A | |||||
M-4864-A | |||||
Four-speed transmission with over/under lever located to the left of the shift lever. Tractor must be stopped before shifting. Also available as basic four-speed. This trasmission option was dropped in 1970 and replaced with the six-speed. | |||||
ESN-M2C77A | |
|---|---|
M-4864-A |

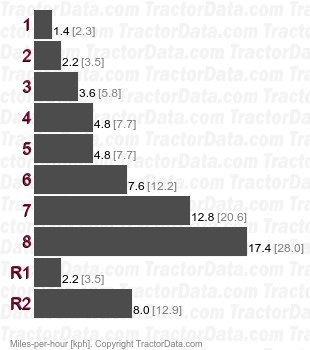

Speeds | |
|---|---|
 |
Transmission | |||||
|---|---|---|---|---|---|
Type | gear | ||||
Gears | 8 forward and 2 reverse | ||||
Oil capacity | 13.2 qts
12.5 L | ||||
Oil type | ESN-M2C77AM-4864-A | ESN-M2C77A | M-4864-A | ||
ESN-M2C77A | |||||
M-4864-A | |||||
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting. | |||||
ESN-M2C77A | |
|---|---|
M-4864-A |
Speeds | |
|---|---|
 |
Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | gear |
Gears | 6 forward and 2 reverse |
The six-speed transmission was first offered on the Ford 3000 in 1970, replacing the four-speed. | |
Speeds | |
|---|---|
 |
Shift Pattern | |
|---|---|
 |
