AGCO Allis 9435

1994 - 1997
9400 Series
Row-Crop tractor

OCED Tractor Test 1692

OCED Tractor Test 1692
Diesel 32-speed 4WD May 17 - June 5, 1995 Link: OCED Tractor Test 1692 file
PTO performance
Max power	143.78 hp 107.2 kW

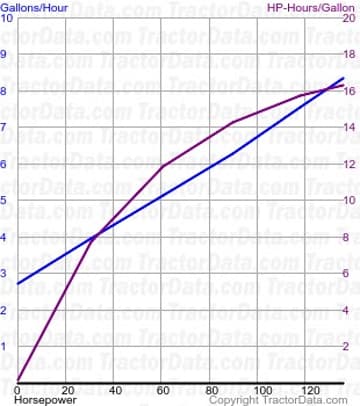

Fuel use	8.2 gal/hour 31.0 l/hour
Power at rated engine speed	135.69 hp 101.2 kW
Fuel use	8.3 gal/hour 31.4 l/hour
Power at rated PTO speed	140.86 hp 105.0 kW
Fuel use	8.3 gal/hour 31.4 l/hour
Drawbar performance
Max power	120.26 hp 89.7 kW
Fuel use	8.2 gal/hour 31.0 l/hour
Max pull	15390 lbs 6980 kg
