agco allis 9670
 | 1994 - 1995
9600 SeriesRow-Crop tractor | 1994 - 1995 | 9600 Series | Row-Crop tractor |
|---|---|---|---|---|
1994 - 1995 | ||||
9600 Series | ||||
Row-Crop tractor | ||||
1994 - 1995 | |
|---|---|
9600 Series | |
Row-Crop tractor |
OCED Tractor Test 1683 | ||
|---|---|---|
 | | |
| ||
|
|---|
OCED Tractor Test 1683 | |
|---|---|
Diesel 18-speed 4WD
October 6 - 21, 1994
Link: OCED Tractor Test 1683 file | |
PTO performance | |
Max power | 181.12 hp
135.1 kW |

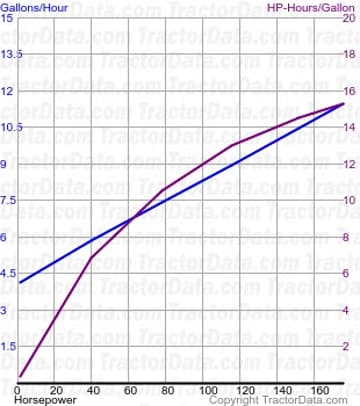

Fuel use | 10.9 gal/hour
41.3 l/hour |
Power at rated engine speed | 175.19 hp
130.6 kW |
Fuel use | 11.5 gal/hour
43.5 l/hour |
Power at rated PTO speed | 181.12 hp
135.1 kW |
Fuel use | 10.9 gal/hour
41.3 l/hour |
Drawbar performance | |
Max power | 152.23 hp
113.5 kW |
Fuel use | 11.5 gal/hour
43.5 l/hour |
Gear 7 used for power test. | |
Max pull | 18749 lbs
8504 kg |
Gear 4 used for pull test. | |
