agco allis 9735
![]() | 1998 - 2001
9700 SeriesRow-Crop tractor | 1998 - 2001 | 9700 Series | Row-Crop tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
9700 Series | ||||
Row-Crop tractor | ||||
1998 - 2001 | |
|---|---|
9700 Series | |
Row-Crop tractor |
OCED Tractor Test 1758 | ||
|---|---|---|
![]() | ![]() | |
![]() | ||
![]() |
|---|
OCED Tractor Test 1758 | |
|---|---|
Diesel 32-speed 4WD
October 2 - November 19, 1998
Link: OCED Tractor Test 1758 file | |

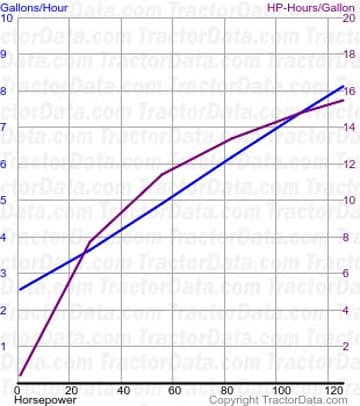

PTO performance | |
Max power | 137.32 hp
102.4 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Power at rated engine speed | 125.58 hp
93.6 kW |
Fuel use | 8.1 gal/hour
30.7 l/hour |
Power at rated PTO speed | 132.17 hp
98.6 kW |
Fuel use | 8.1 gal/hour
30.7 l/hour |
Drawbar performance | |
Max power | 114.13 hp
85.1 kW |
Fuel use | 8.2 gal/hour
31.0 l/hour |
Gear 1HB used for power test. | |
Max pull | 14,836 lbs
6729 kg |
Gear 2LB used for pull test. | |
