agco allis 9745
 | 1998 - 2001
9700 SeriesRow-Crop tractor | 1998 - 2001 | 9700 Series | Row-Crop tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
9700 Series | ||||
Row-Crop tractor | ||||
1998 - 2001 | |
|---|---|
9700 Series | |
Row-Crop tractor |
OCED Tractor Test 1752 | ||
|---|---|---|
 | | |
| ||
|
|---|
OCED Tractor Test 1752 | |
|---|---|
Diesel 18-speed 4WD
October 6 - 10, 1998
Link: OCED Tractor Test 1752 file | |

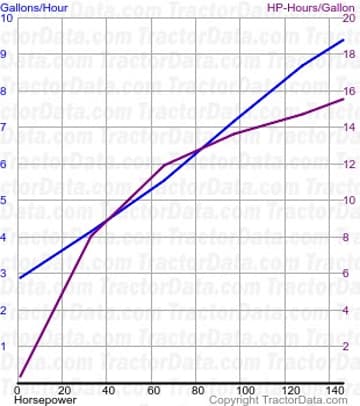

PTO performance | |
Max power | 157.90 hp
117.7 kW |
Fuel use | 9.2 gal/hour
34.8 l/hour |
Power at rated engine speed | 146.00 hp
108.9 kW |
Fuel use | 9.4 gal/hour
35.6 l/hour |
Power at rated PTO speed | 152.21 hp
113.5 kW |
Fuel use | 9.4 gal/hour
35.6 l/hour |
Drawbar performance | |
Max power | 131.75 hp
98.2 kW |
Fuel use | 9.5 gal/hour
36.0 l/hour |
Gear 10 used for power test. | |
Max pull | 15,017 lbs
6811 kg |
Gear 5 used for pull test. | |
