agco allis 9755
 | 1998 - 2001
9700 SeriesRow-Crop tractor | 1998 - 2001 | 9700 Series | Row-Crop tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
9700 Series | ||||
Row-Crop tractor | ||||
1998 - 2001 | |
|---|---|
9700 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1781A: Navistar diesel 18-speed 4WD | |
OECD 1781: Cummins diesel 18-speed 4WD |

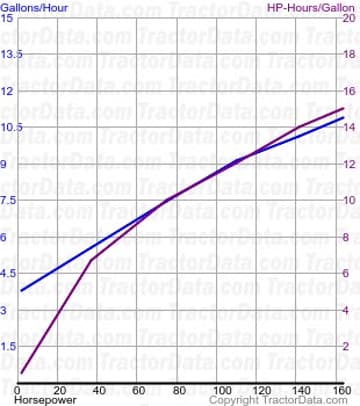

Nebraska Tractor Test 1781A | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1781A | |
|---|---|
Navistar diesel 18-speed 4WD
September 21 - 22, 2000
Link: Nebraska Tractor Test 1781A file | |
PTO performance | |
Max power | 174.25 hp
129.9 kW |
Fuel use | 10.4 gal/hour
39.4 l/hour |
Power at rated engine speed | 163.45 hp
121.9 kW |
Fuel use | 10.9 gal/hour
41.3 l/hour |
Power at rated PTO speed | 168.92 hp
126.0 kW |
Fuel use | 10.5 gal/hour
39.7 l/hour |
OCED Tractor Test 1781 | ||
|---|---|---|
 | | |
| ||
|
|---|
OCED Tractor Test 1781 | |
|---|---|
Cummins diesel 18-speed 4WD
September 7 - 27, 2000
Link: OCED Tractor Test 1781 file | |
PTO performance | |
Max power | 168.30 hp
125.5 kW |
Fuel use | 10.5 gal/hour
39.7 l/hour |
Power at rated engine speed | 164.38 hp
122.6 kW |
Fuel use | 10.7 gal/hour
40.5 l/hour |
Power at rated PTO speed | 168.30 hp
125.5 kW |
Fuel use | 10.5 gal/hour
39.7 l/hour |
Drawbar performance | |
Max power | 142.58 hp
106.3 kW |
Fuel use | 10.4 gal/hour
39.4 l/hour |
Gear 10 used for power test. | |
Max pull | 17894 lbs
8116 kg |
Gear 5 used for pull test. | |
