TractorData Logo
TractorData

agco allis 9765

OverviewEngineTransmissionDimensionsTestsPhotos
AGCO Allis 9765 tractor photo
1998 - 2001 9700 SeriesRow-Crop tractor
1998 - 2001
9700 Series
Row-Crop tractor
1998 - 2001
9700 Series
Row-Crop tractor
1998 - 2001
9700 Series
Row-Crop tractor
Tractor Tests
NTTL 1782A: Navistar diesel 18-speed 4WD
OECD 1782: Cummins diesel 18-speed 4WD
Nebraska Tractor Test 1782A

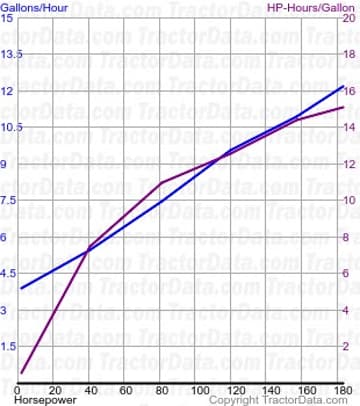

9765 fuel use from test 1782A
9765 fuel use from test 1782A
9765 fuel use from test 1782A
9765 fuel use from test 1782A
Nebraska Tractor Test 1782A
Navistar diesel 18-speed 4WD September 22 - 26, 2000 Link: Nebraska Tractor Test 1782A file
PTO performance
Max power
194.87 hp 145.3 kW
Fuel use
11.6 gal/hour 43.9 l/hour
Power at rated engine speed
183.20 hp 136.6 kW
Fuel use
12.2 gal/hour 46.2 l/hour
Power at rated PTO speed
200.01 hp 149.1 kW
Fuel use
11.9 gal/hour 45.0 l/hour
OCED Tractor Test 1782

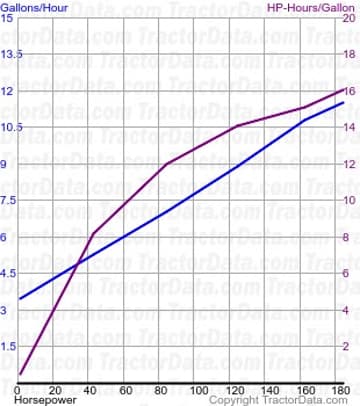

9765 fuel use from test 334
9765 fuel use from test 334
9765 fuel use from test 334
9765 fuel use from test 334
OCED Tractor Test 1782
Cummins diesel 18-speed 4WD September 12 - 26, 2000 Link: OCED Tractor Test 1782 file
PTO performance
Max power
200.01 hp 149.1 kW
Fuel use
11.9 gal/hour 45.0 l/hour
Power at rated engine speed
184.29 hp 137.4 kW
Fuel use
11.5 gal/hour 43.5 l/hour
Drawbar performance
Max power
160.22 hp 119.5 kW
Fuel use
11.4 gal/hour 43.1 l/hour
Gear 8 used for power test.
Max pull
18618 lbs 8445 kg
Gear 5 used for pull test.
