agco lawn tractors 1316h
 | 1990 - 1994
1300 SeriesFront-mount mowerSimplicity built | 1990 - 1994 | 1300 Series | Front-mount mower | Simplicity built |
|---|---|---|---|---|---|
1990 - 1994 | |||||
1300 Series | |||||
Front-mount mower | |||||
Simplicity built | |||||
1990 - 1994 | |
|---|---|
1300 Series | |
Front-mount mower | |
Simplicity built |
Series map: 1313H1316H12.5hp16.0hp
Note: the AGCO model 1316H is the same as the Simplicity 16FCH48. The following data is from the 16FCH48 listing. |
|---|
Engine Detail | |
|---|---|
Briggs & Stratton | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | paper element with foam pre-cleaner |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Oil change | 25 h |

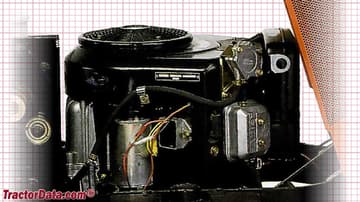

AGCO 1316H Engine | |
|---|---|
 |
