agco lawn tractors 1820h
![]() | 2002 - 2005
1800 SeriesGarden tractorSimplicity built | 2002 - 2005 | 1800 Series | Garden tractor | Simplicity built |
|---|---|---|---|---|---|
2002 - 2005 | |||||
1800 Series | |||||
Garden tractor | |||||
Simplicity built | |||||
2002 - 2005 | |
|---|---|
1800 Series | |
Garden tractor | |
Simplicity built |
Series map: 1820H1823H20.0hp23.0hp
Note: the AGCO model 1820H is the same as the Simplicity Prestige 20. The following data is from the Prestige 20 listing. |
|---|
Production | |
|---|---|
Distributor | AGCO |
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $5,725 in 2003 | |
Variants | |
|---|---|
Prestige 20 | similar Simplicity model |
2820 | similar Massey Ferguson model |
AGCO 1820H Engine | |
|---|---|
20HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ... | |
AGCO 1820H Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Steering | manual |
| power optional |
Open operator station. | |
Photos | |
|---|---|
![]() | |
AGCO 1820H photos... |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Weight | 666 lbs
302 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ... | |
AGCO 1820H attachments | |
|---|---|

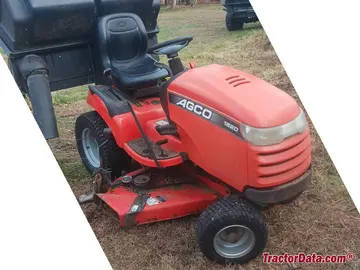

50" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ... |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 500 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Lawn & Garden Equipment published in 2004, by AGCO |
