agco lawn tractors 2024d
 | 1999 - 2003
2000 SeriesGarden tractorSimplicity built | 1999 - 2003 | 2000 Series | Garden tractor | Simplicity built |
|---|---|---|---|---|---|
1999 - 2003 | |||||
2000 Series | |||||
Garden tractor | |||||
Simplicity built | |||||
1999 - 2003 | |
|---|---|
2000 Series | |
Garden tractor | |
Simplicity built |
Series map: 2023H2024D2025H23.0hp24.5hp25.0hp
Note: the AGCO model 2024D is the same as the Simplicity Legacy 24.5. The following data is from the Legacy 24.5 listing. |
|---|
Engine Detail | |
|---|---|
Briggs & Stratton DM 950 | |
diesel | |
3-cylinder | |
liquid-cooled horizontal-shaft inline | |
Displacement | 952 cc
58.1 ci |
Bore/Stroke | 2.87x3.07 inches
73 x 78 mm |
Power (gross) | 24.5 hp
18.3 kW |
Compression | 24:1 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.2 qts
3.0 L |
Coolant capacity | 6 qts
5.7 L |

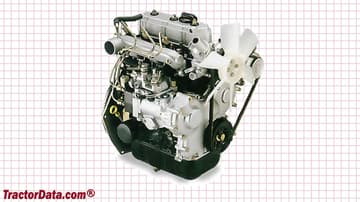

AGCO 2024D Engine | |
|---|---|
 |
