Allis Chalmers 170
 | 1967 - 1973
Row-Crop tractor |
|---|---|
1967 - 1973 | |
Row-Crop tractor | |
1967 - 1973 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Allis Chalmers 3.7L 4-cyl |
Engine Detail | |
|---|---|
Perkins 4.236 | |
diesel | |
4-cylinder | |
liquid-cooled | |
Displacement | 236 ci
3.9 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Compression | 16:1 |
Rated RPM | 1800 |
Firing order | 1-3-4-2 |
Coolant capacity | 15 qts
14.2 L |
Intake valve clearance | 0.010 inches (hot)
0.254 mm |
Exhaust valve clearance | 0.010 inches (hot)
0.254 mm |

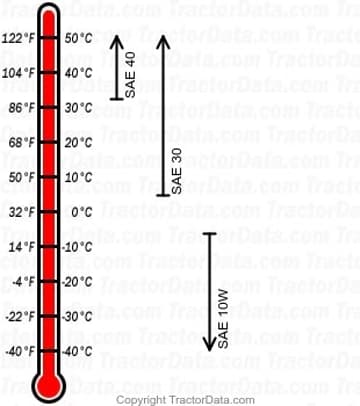

Engine Oil | |
|---|---|
 | |
Oil capacity | 7 qts
6.6 L |
Engine Detail | |
|---|---|
Allis Chalmers G-226 | |
4-cylinder | |
liquid-cooled | |
Displacement | 226 ci
3.7 L |
Bore/Stroke | 4.00x4.50 inches
102 x 114 mm |
Compression | 8:1 |
Rated RPM | 1800 |
Firing order | 1-2-4-3 |
Coolant capacity | 15 qts
14.2 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.022 inches
0.559 mm |
Intake valve clearance | 0.010 inches
0.254 mm |
Exhaust valve clearance | 0.014 inches
0.356 mm |

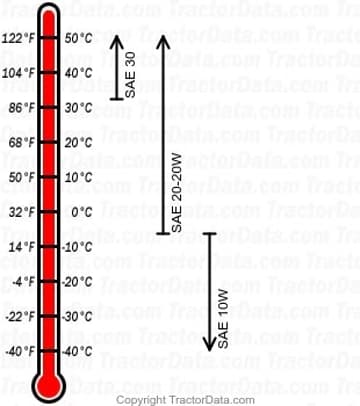

Engine Oil | |
|---|---|
 | |
Oil capacity | 6 qts
5.7 L |
